Overview

To connect with ADOXX (Client Credentials), you need:
  1. Base URL – The address of your ADOXX instance, including the product/version path segment (e.g. yourserver.com:8000/ADOXX).
  2. Client ID – The Client ID of an OAuth 2.0 client registered for the Client Credentials Flow.
  3. Client Secret – The Client Secret generated for that client.
This guide walks you through obtaining these values from the ADOXX Administration (steps below use ADONIS terminology — menu names may differ slightly on other ADOXX-based products).
If your ADOXX instance is BOC’s cloud-hosted (SaaS) offering rather than self-hosted, some settings may be pre-configured or restricted rather than self-service — for example, SaaS customers configure their CORS policy by contacting hotline@boc-group.com instead of editing it directly. If you can’t find or access the screens in the steps below, contact BOC support to confirm what’s self-service on your plan.

​
Prerequisites

  • Administrative access to the ADOXX Administration.

​
Instructions

​
Step 1: Create a technical user

The Client Credentials Flow runs requests in the context of a technical user, so create one first.
  1. Go to the Users page and click New User.
  2. On the General tab, enter a name (e.g. Technical_StandardRESTfulServices) and set a password.
  3. On the Groups and roles tab, assign the user to the Default user group.
  4. On the Repository tab, assign only the repository holding the data you want to query.
  5. Click Create.
  6. Hover over the new user, click More > Edit, and on the General tab enable Trusted login.
  1. Go to Settings > System settings > System.
  2. In the Base URL field, enter the URL where the instance can be reached from other machines, e.g. http://<SERVER_NAME>:<TOMCAT_PORT>/ADONIS16_0/ (default port is 8000).
  3. Nango’s Base URL field expects a different format: no protocol and no trailing slash — Nango always connects over https://. Strip both from the value above before entering it in Nango, e.g. <SERVER_NAME>:<TOMCAT_PORT>/ADONIS16_0.
  4. Click Select users and choose the technical user created in step 1.
  5. Click Save.

​
Step 3: Enable the REST API and OAuth 2.0, and define a scope

  1. Go to Settings > Standard RESTful Services > General.
  2. Enable Enable Standard RESTful Services globally.
  3. Switch to the OAuth 2.0 tab and enable Enable OAuth 2.0.
  4. Enable the REST scenarios (Repository / Users / Metamodel) your integration needs — a disabled scenario returns 403 FORBIDDEN for its endpoints.
  5. Under Scopes, click Add scopes and create at least one scope: give it a name (e.g. REST_READ), optionally restrict it by IP, and select the technical user from step 1.
  6. Save your changes.

​
Step 4: Register an OAuth 2.0 client

  1. Go to Home > More options > OAuth 2.0.
  2. Select OAuth 2.0 enabled.
  3. Click Add to create a new client.
  4. Fill in the Client Data form:
    • Type: Confidential (able to securely store a client secret).
    • ID: a unique client identifier, kept simple (avoid special characters).
    • Name: a display name for the client application.
    • Redirect URI: the form requires this field even though it’s unused for the Client Credentials Flow — any placeholder value works.
    • Secret: click Generate to create the Client Secret.
  5. Click Save changes. Copy the ID and Secret — these are your Client ID and Client Secret.

​
Step 5: Enter credentials in Nango

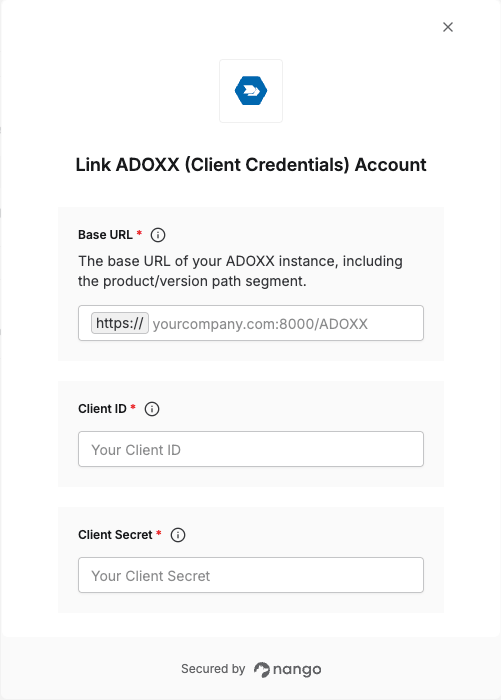

  1. Open the Nango Connect form.
  2. Enter your Base URL (from step 2), Client ID, and Client Secret (from step 4).
  3. Submit the form, and you should be successfully authenticated.
You are now connected to ADOXX using Client Credentials.
