Overview

To authenticate with Workday using Client Credentials, you will need:

1. Token Domain - The hostname of your Workday tenant
2. Tenant - The tenant name of your Workday account
3. Client ID - Your Workday API Client ID
4. Client Secret - Your Workday API Client Secret

This guide will walk you through finding each of these values.

​

Prerequisites

• An active Workday account with administrator access
• Access to register API clients for integrations
• OAuth 2.0 enabled on your Workday tenant

​

Instructions

​

Step 1: Enable OAuth 2.0

1. In Workday, search for and open Edit Tenant Setup – Security.
2. Ensure OAuth 2.0 is enabled.

​

Step 2: Finding your Token Domain

1. In your Workday homepage, search for and select View API Clients.
2. Locate the Token Endpoint field.
3. Your Token Domain is everything after https:// and before /ccx.

• Example: If the endpoint is https://wd2-impl-services1.workday.com/ccx/oauth2/acme/token, your Token Domain is wd2-impl-services1.workday.com.

​

Step 3: Finding your Tenant

In the same Token Endpoint field, your Tenant is the segment after /oauth2/ and before /token.

• Example: If the endpoint is https://wd2-impl-services1.workday.com/ccx/oauth2/acme/token, your Tenant is acme.

​

Step 4: Create an Integration System User (ISU)

The ISU is a dedicated service account that acts as the subject of all access tokens issued to your API client. You will link it to the client in Step 6.

1. Search for and open Create Integration System User.
2. Enter a username and password. Set Session Timeout Minutes to 0 to prevent session expiration. Leave Require New Password at Next Sign In unchecked.
3. Search for Create Security Group, select Integration System Security Group (Unconstrained) as the type, and give it a name.
4. Assign the ISU to this security group via Edit Integration System Security Group.
5. Use Maintain Permissions for Security Group to add the domain security policies your integration requires (e.g., Worker Data: Workers).
6. Run Activate Pending Security Policy Changes to apply.

​

Step 5: Register an API Client

1. Search for and open Register API Client for Integrations.
2. Enter a name (e.g. Nango Client Credentials).
3. Set Grant Type to Client Credentials.
4. Select the functional area scopes your integration requires (e.g. Human Resources, Staffing, System). The ISU must also have access to the domain security policies that govern these scopes.
5. Click OK to save.
6. Copy the Client ID and Client Secret — the secret is shown only once.

​

Step 6: Create a Client Credentials Mapping

This step links the API client to the ISU. Unlike the Refresh Token flow (where the ISU is associated via refresh token management), Client Credentials uses a dedicated mapping task.

1. Search for and open Create Client Credentials Mapping.
2. Enter the Client ID of the API client you registered in Step 5.
3. Select the Integration System User you created in Step 4.
4. Click OK to save.

​

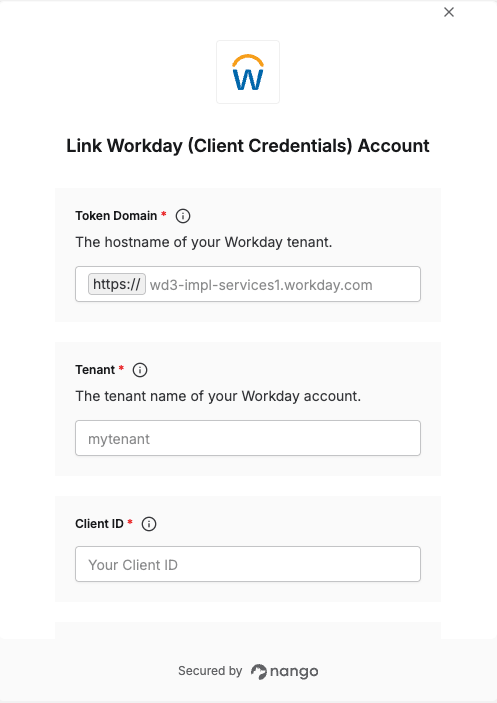

Step 7: Enter credentials in the Connect UI

1. Open the form where you need to authenticate with Workday.
2. Enter your Token Domain, Tenant, Client ID, and Client Secret in their respective fields.
3. Submit the form.

You are now connected to Workday (Client Credentials).

---
