Overview

1. Host - The hostname of your Workday instance (used for API calls and token requests).
2. Tenant - The unique identifier for your Workday tenant.
3. Client ID - From your registered Workday API client (with JWT Bearer Grant and Adaptive Planning scope).
4. ISU Username - The Integration System User username (beginning with PublicAPIISU_).
5. Private Key - The RSA private key (PKCS8 PEM format) used to sign the JWT — generated alongside the certificate registered in your Workday API client.

​

Prerequisites

• A Workday administrator account.
• OpenSSL installed on your machine.

​

Instructions

​

Step 1: Generate a certificate and private key

• privatekey_workday.key – Your private key (PKCS8 format). Use this as the Private Key in Nango.
• cert_workday.pem – The self-signed certificate. Upload this to Workday as an X.509 Public Key.

1. Open a terminal and change to a directory where you want to store the files (e.g. mkdir ~/cert && cd ~/cert).
2. Generate a self-signed certificate and RSA key:
   openssl req -x509 -newkey rsa:2048 -keyout key.pem -out cert_workday.pem -days 3650

   This creates cert_workday.pem (the certificate) and key.pem (an encrypted RSA key).
3. Convert the RSA key to PKCS8 format:
   openssl pkcs8 -topk8 -inform PEM -outform PEM -nocrypt -in key.pem -out privatekey_workday.key

   This creates privatekey_workday.key — the private key you will enter in Nango.

​

Step 2: Register the certificate in Workday

1. Log in to Workday using your administrator account.

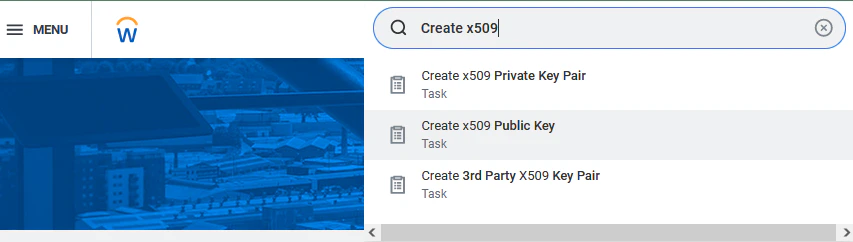

2. In the search bar, type Create x509 Public Key and select it from the results.

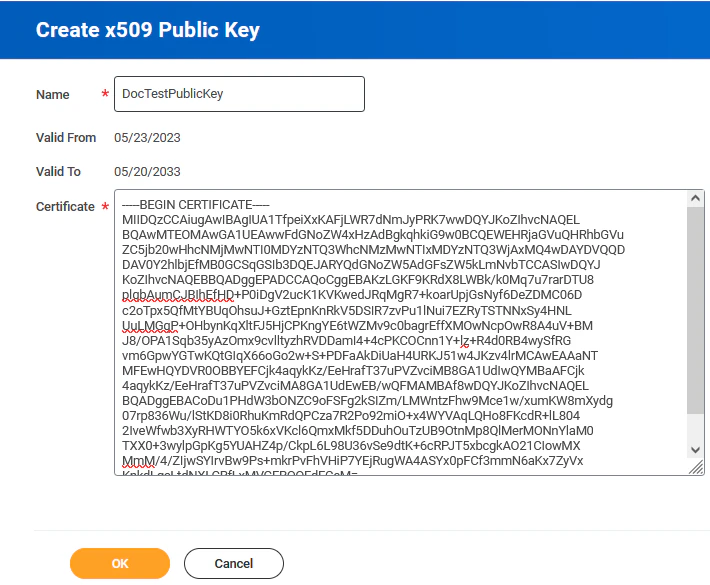

3. Enter a name for the key in the Name field.
4. Copy the full contents of cert_workday.pem (including the -----BEGIN CERTIFICATE----- and -----END CERTIFICATE----- lines) and paste it into the Certificate field.
5. Click OK.

​

Step 3: Register an API client

1. In the search bar, type Register API Client and select it from the results.

2. Fill in all required fields (marked with red stars).
3. Under grant type, select JWT Bearer Grant.
4. Under token type, select Bearer.
5. Under scope, select Adaptive Planning.
6. Associate the X.509 public key you created in Step 2 with this API client.
7. Click OK.

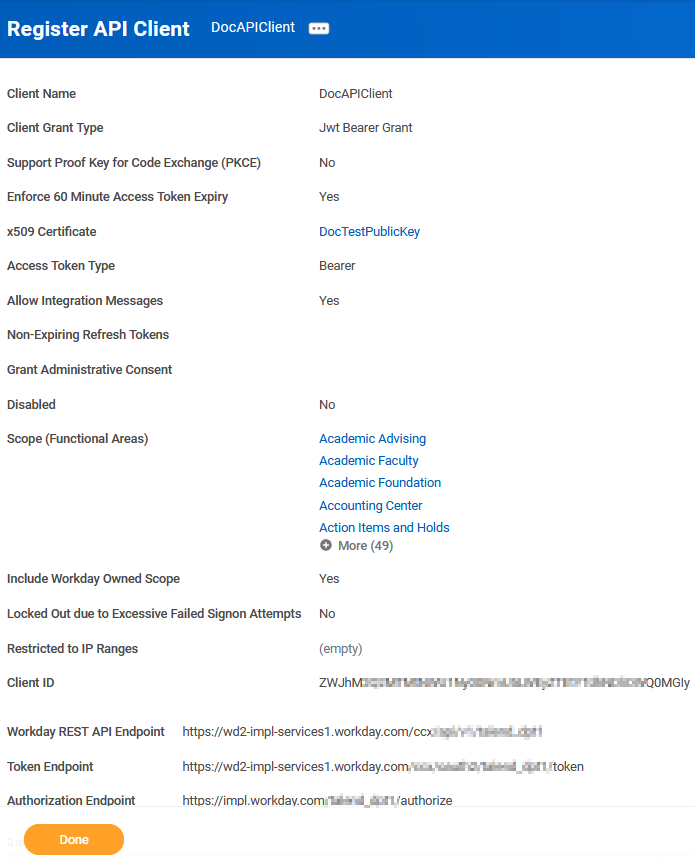

8. On the confirmation page, copy and save the following values for later:
   • Client ID
   • Token Endpoint (used to extract your Host and Tenant — see Step 5)

​

Step 4: Assign your ISU to a security group

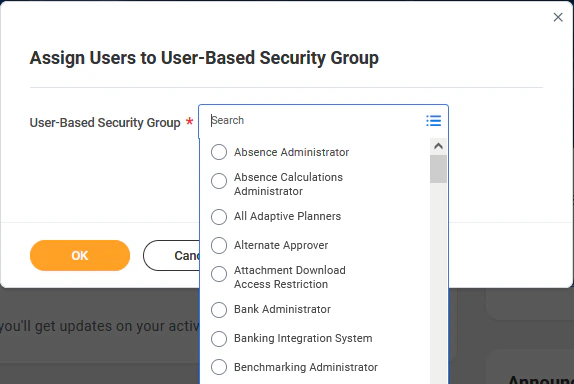

1. In the search bar, type Assign Users to User-Based Security Group and select it.
2. Click in the User-Based Security Group field and select the appropriate security group for Adaptive Planning.
3. Add your Integration System User (ISU) to the group.

4. Click OK. Repeat for any additional security groups as needed.

​

Step 5: Find your Host and Tenant

https://{host}/ccx/oauth2/{tenant}/token

• Host: the segment after https:// and before /ccx (e.g. wd3-impl-services1.workday.com)
• Tenant: the segment after /oauth2/ and before /token (e.g. mytenant_abc)

​

Step 6: Find your ISU Username

1. In Workday, search for Integration System Users.
2. The ISU username used for Adaptive Planning starts with PublicAPIISU_.
3. You can also verify this in Adaptive Planning under the users list — the ISU should appear there with the same PublicAPIISU_ prefix.

​

Step 7: Enter credentials in the Connect UI

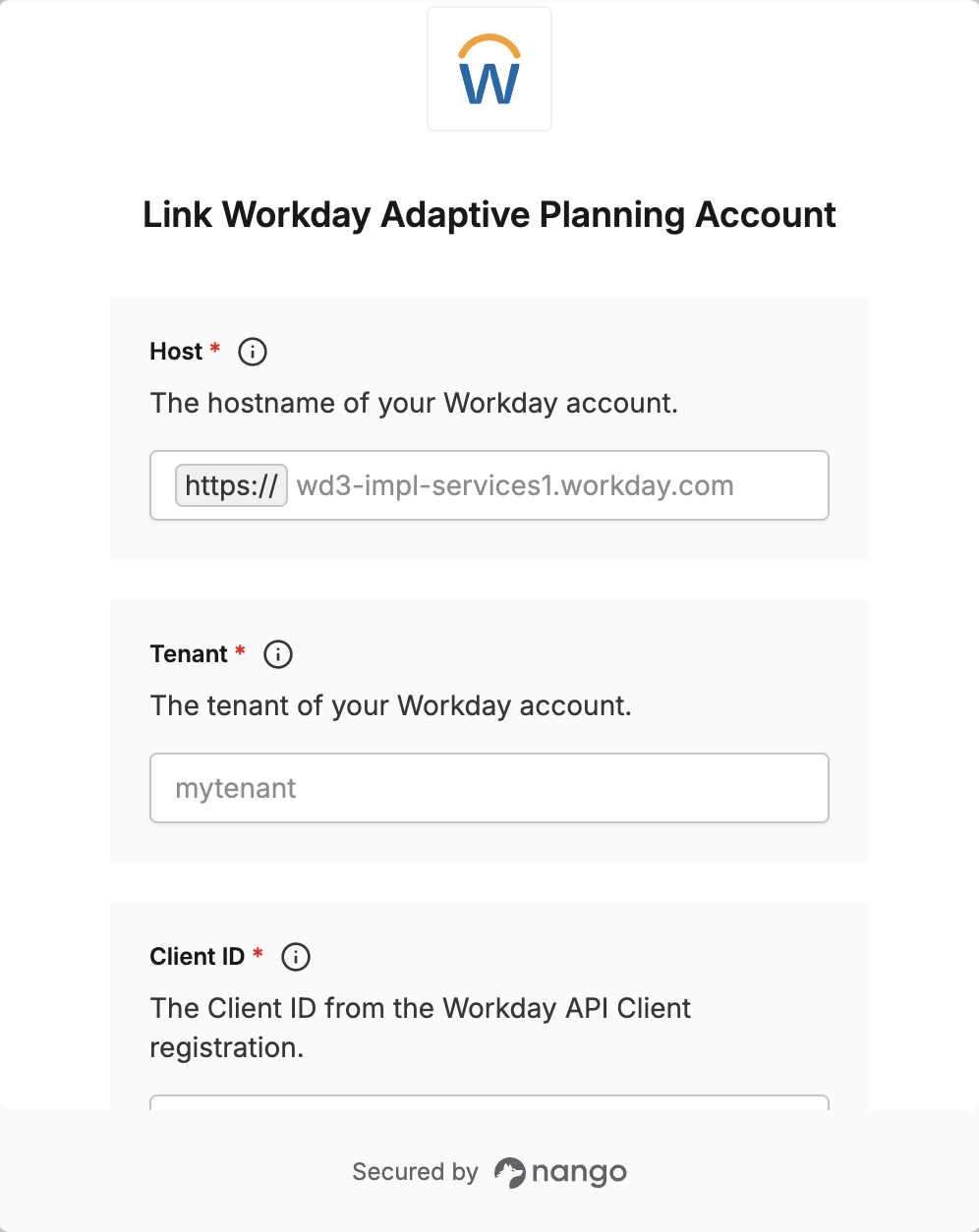

1. Open the form where you need to authenticate with Workday Adaptive Planning.
2. Enter your Host, Tenant, Client ID, ISU Username, and Private Key in their designated fields.
3. Submit the form, and you should be successfully authenticated.
